Import new RhinoResurf toolbar in Rhino 7/8

Question: How to import new RhinoResurf toolbar in Rhino 7/8?

Answer: Please use the following steps to import new RhinoResurf toolbar in Rhino 7/8:

step 1: download new toolbar file from here: https://www.resurf3d.com/RhinoResurf_Toolbar/RhinoResurf_r7.rui . https://www.resurf3d.com/RhinoResurf_Toolbar/RhinoResurf_r8.rui Find RhinoResurf installation folder in your system. Typically, it is "C:\Program Files\Rhino 7\Plug-ins\RhinoResurf", and replace the file Rhinoresurf_r7.rui with this new one.

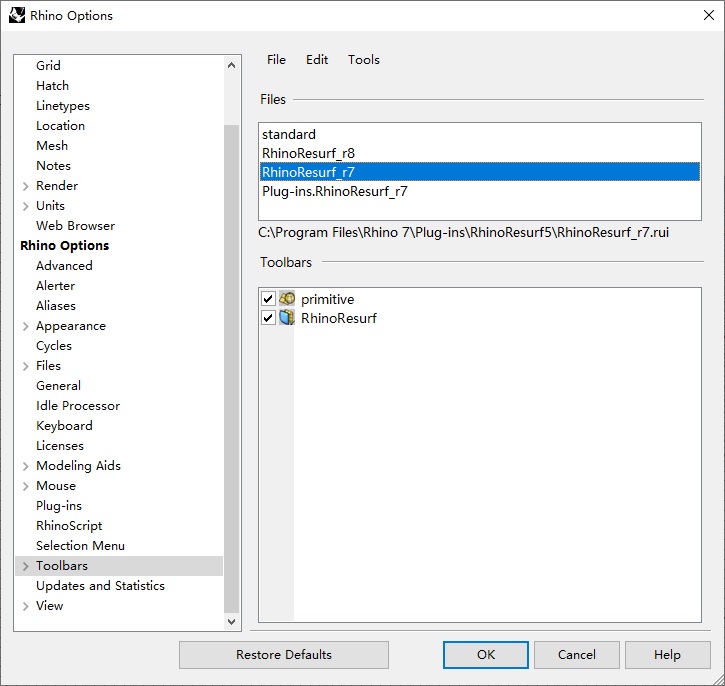

step 2 : import new RhinoResurf toolbar in Rhino 7. Run command _Toolbar , you will see the following dialog:

select the current toolbar RhinoResurf_r7 .

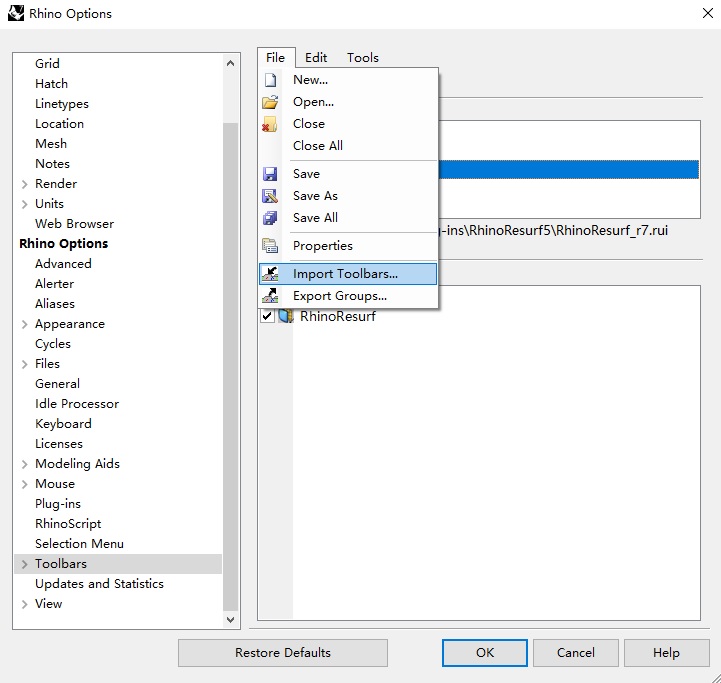

select 'File->import toolbars...", then find the RhinoResurf installation folder, pick the file RhinoResurf_r7.rui , click ok.
