4. FAQs

Why RhinoResurf register dialog does not display in my Rhino?



What should I do when RhinoResurf was blocked to be loaded into Rhino?

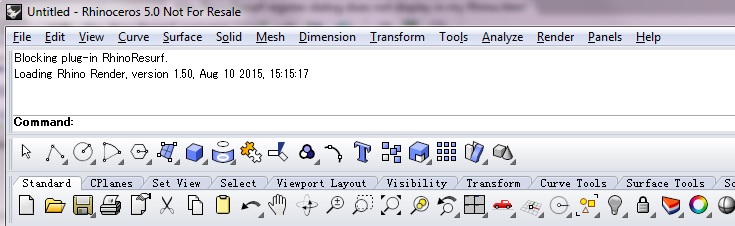

When you start Rhino and find there is no 'RhinoResurf' menuitem displayed in Rhino menu. This may because RhinoResurf was blocked to be loaded into Rhino. You may read a line 'Blocking plug-in RhinoResurf.' in Rhino prompt as shown in the following picture.

There are 2 solutions to this problem.

Solution 1: Find RhinoResurf plug-in file and unblock it. Typically RhinoResurf plug-in file name 'RhinoResurf_x64.rhp' is in the folder 'C:\Program Files\Rhinoceros 5 (64-bit)\Plug-ins\RhinoResurf'. ( For more details, please visit
http://wiki.mcneel.com/rhino/unblockplugin )

• Close Rhino.

• Right-click on the file 'RhinoResurf_x64.rhp' and choose Properties from the context menu.

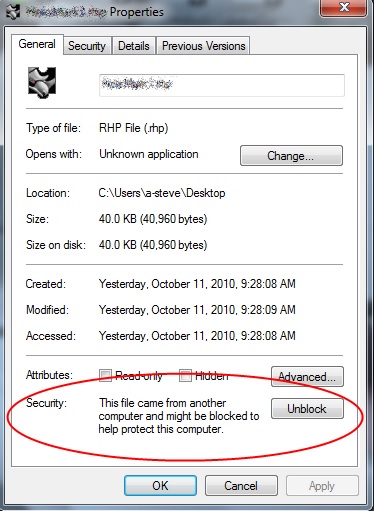

• You should see a dialog that looks like the image at the bottom of this page.

• Click the Unblock button.

• Right-click on the Rhino shortcut icon. Select Run as administrator.

• Load your plug-in.

Solution 2: If your question can not be solved by he above solution. This may because RhinoResurf is not blocked by Windows and you need to start Rhino by clicking RhinoResurf shortcut icon directly.

• Close Rhino.

• Right-click on the file 'RhinoResurf_x64.rhp' and create a shortcut icon on the desktop.

• Right-click on the RhinoResurf shortcut icon. Select Load Plug-in in Rhinoceros Rhino 5 (64-bit) to start Rhino 5 (64-bit).
