NURBS Curveback Recompensation Deformation Rapid Test and Code Integration Guide

1. Two compressed documents are to be obtained: ResurfNurbsLib Surfmap.zip and ResurfFitdemo vs2019.zip, if none, please contact 19951773192 (Mr. Lee).

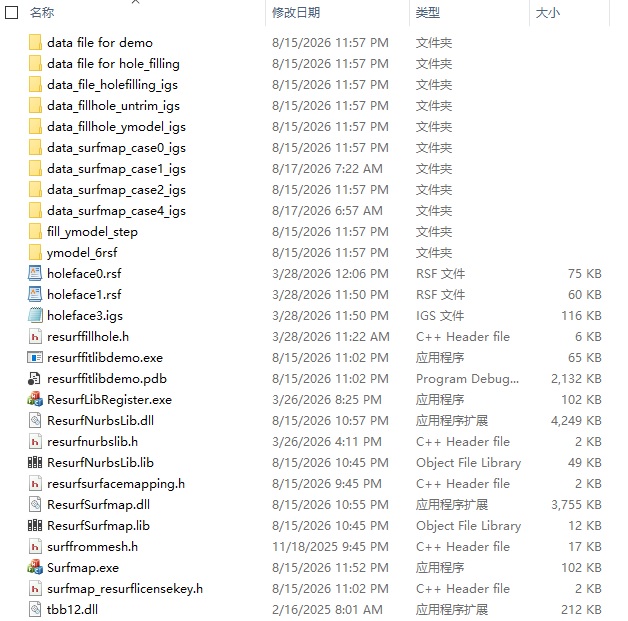

2. Understand the contents of the document ResurfNurbsLib Surfmap.zip. Unpress this file, the following list is available:

The following documents are needed to compensate NURBS for curvature:

ResurfSurfmap.dll
ResurfSurfmap.lib
tbb12.dll
Surfmap.exe (registration machine)
resurfsurfacemapping.h
surfmap_resurflicensekey.h
Data surfmap case1 igs (with test data, demo will be used)
Data surfmap case2 igs (with test data, demo will be used)
Data surfmap case3 igs (with test data)
Data surfmap case0 igs (with test data)
Resurffitlibdemo.exe Test Program

Test data description: Table of contents data surfmap case1 igs contains data for testing, where:

original.stl grid
Morph.stl deformed grid
Original.igs Original NURBS Curve

How do you test your data with the test program Resurffitlibdemo.exe?

1) Prepare the data file and name your original grid stl file as original.stl, deformation grid file as mornph.stl, original curve file as original.igs.
2). Copy these three documents to the directory'data surfmap case1 igs", overwrite the original document.

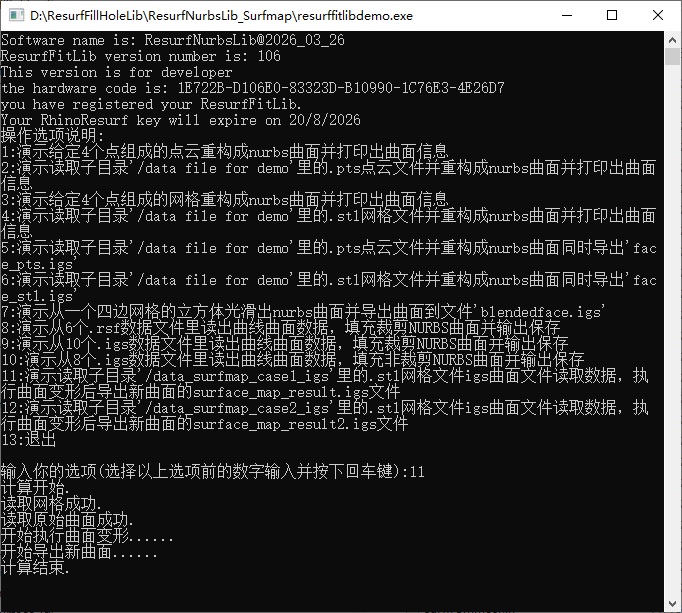

3). Execute Resurffitlibdemo.exe, when ZXEXTITY0XZ11", press back to the car. After implementation, the following results will be seen: The new side igs file, ZXXENTITY2XZsurface map result.igsZXXENTITTY3XZ, under Resurffitlibdemo.exe.
4).Caution: The current version supports only the same number of original grids and deformation grid vertexes, the same number of units, the same situation, and, if this is not the case, the addition of new api for later interaction.

Know what is in the ResurfNurbsLib Surfmap.zip. ResurfNurbsLib Surfmap.zip is the interface calling model code project, which is opened using vs studio 2019 when depressed. in which functionstestSurfacemapByNurbsApiIgs()Corresponds to the curvature function. References Full function calls code reference cases 。
